Reproducibility — PowerShell (Run 005)

Windows PowerShell 5+/PowerShell 7+. Uses .NET Charting for PNGs; dependency-free.

# run005_make_all.ps1
# Outputs: figures/r005_*.png, metrics/r005_summary.json, data/r005_*.csv
param(
  [string]$ZerosPath = "zeros6.gz",
  [string]$RunBase = "run005",
  [int]$Take = 100000,
  [int]$ParseCap = 120000
)
$ErrorActionPreference = "Stop"
Add-Type -AssemblyName System.IO.Compression.FileSystem
Add-Type -AssemblyName System.Windows.Forms
Add-Type -AssemblyName System.Windows.Forms.DataVisualization

function Ensure-Dir($p){ $d=[IO.Path]::GetDirectoryName($p); if($d -and -not(Test-Path $d)){ New-Item -ItemType Directory $d | Out-Null } }

function Read-Zeros([string]$gz,[int]$cap){
  $fs=[IO.File]::OpenRead($gz); $gzs=New-Object IO.Compression.GZipStream($fs,[IO.Compression.CompressionMode]::Decompress)
  $sr=New-Object IO.StreamReader($gzs); $vals=New-Object 'System.Collections.Generic.List[double]'
  while(-not $sr.EndOfStream -and $vals.Count -lt $cap){
    $line=$sr.ReadLine().Trim(); if($line.Length -eq 0){ continue }
    $tok=$line.Split((@(' ', "`t")),[StringSplitOptions]::RemoveEmptyEntries)[0]
    [double]$v=0; if([double]::TryParse($tok,[ref]$v)){ $vals.Add($v) }
  }; $sr.Close(); $gzs.Close(); $fs.Close(); ,$vals.ToArray()
}
function Diff([double[]]$a){ $n=$a.Length-1; $d=New-Object double[] $n; for($i=0;$i -lt $n;$i++){ $d[$i]=$a[$i+1]-$a[$i] }; ,$d }
function Unfold([double[]]$s){ $m=($s|Measure-Object -Average).Average; if($m -eq 0 -or [double]::IsNaN($m)){ throw "Bad mean" }
  $u=New-Object double[] $s.Length; for($i=0;$i -lt $s.Length;$i++){ $u[$i]=$s[$i]/$m }; @{ u=$u; m=$m } }

# GOE/GUE
function CDF-GOE([double[]]$s){ ,($s | ForEach-Object { 1.0 - [math]::Exp(-[math]::PI * $_ * $_ / 4.0) }) }
function CDF-GUE([double[]]$s){
  $a=4.0/[math]::PI; $C=32.0/([math]::PI*[math]::PI)
  ,($s | ForEach-Object {
    $sq=[math]::Sqrt($a)*$_
    $term1=[math]::Sqrt([math]::PI)*[math]::Erf($sq)/(4.0*([math]::Pow($a,1.5)))
    $term2=$_*[math]::Exp(-$a*$_*$_)/(2.0*$a)
    $C*($term1-$term2)
  })
}
function KS([double[]]$x,[scriptblock]$F){
  $xs=$x|Sort-Object; $n=$xs.Length; $Fx=& $F $xs
  $Dplus=0.0; $Dminus=0.0
  for($i=1;$i -le $n;$i++){ $Dplus=[math]::Max($Dplus,  $i/$n - $Fx[$i-1]); $Dminus=[math]::Max($Dminus, $Fx[$i-1] - ($i-1)/$n) }
  $D=[math]::Max($Dplus,$Dminus); $t=([math]::Sqrt($n)+0.12+0.11/[math]::Sqrt($n))*$D
  $p=0.0; for($k=1;$k -le 100;$k++){ $p += ((-1.0)**($k-1))*[math]::Exp(-2.0*$k*$k*$t*$t) }; $p=[math]::Max(0.0,[math]::Min(1.0,2*$p))
  return @{D=$D; p=$p}
}
function AD([double[]]$x,[scriptblock]$F){
  $xs=$x|Sort-Object; $n=$xs.Length; $Fx=& $F $xs | ForEach-Object { [math]::Min([math]::Max($_,1e-12),1-1e-12) }
  $A2=-$n; for($i=1;$i -le $n;$i++){ $u=(2*$i-1)/(2.0*$n); $A2+= (($Fx[$i-1]-$u)*($Fx[$i-1]-$u)) } ; return $A2
}

# load data
$vals=Read-Zeros $ZerosPath $ParseCap
if($vals.Length -lt $Take){ throw "Parsed only $($vals.Length)" }
$z=$vals[0..($Take-1)]; $spRaw=Diff $z; $u=Unfold $spRaw; $sp=$u.u

# tests
$ksGoe=KS $sp { param($x) CDF-GOE $x }
$ksGue=KS $sp { param($x) CDF-GUE $x }
$adGoe=AD $sp { param($x) CDF-GOE $x }
$adGue=AD $sp { param($x) CDF-GUE $x }

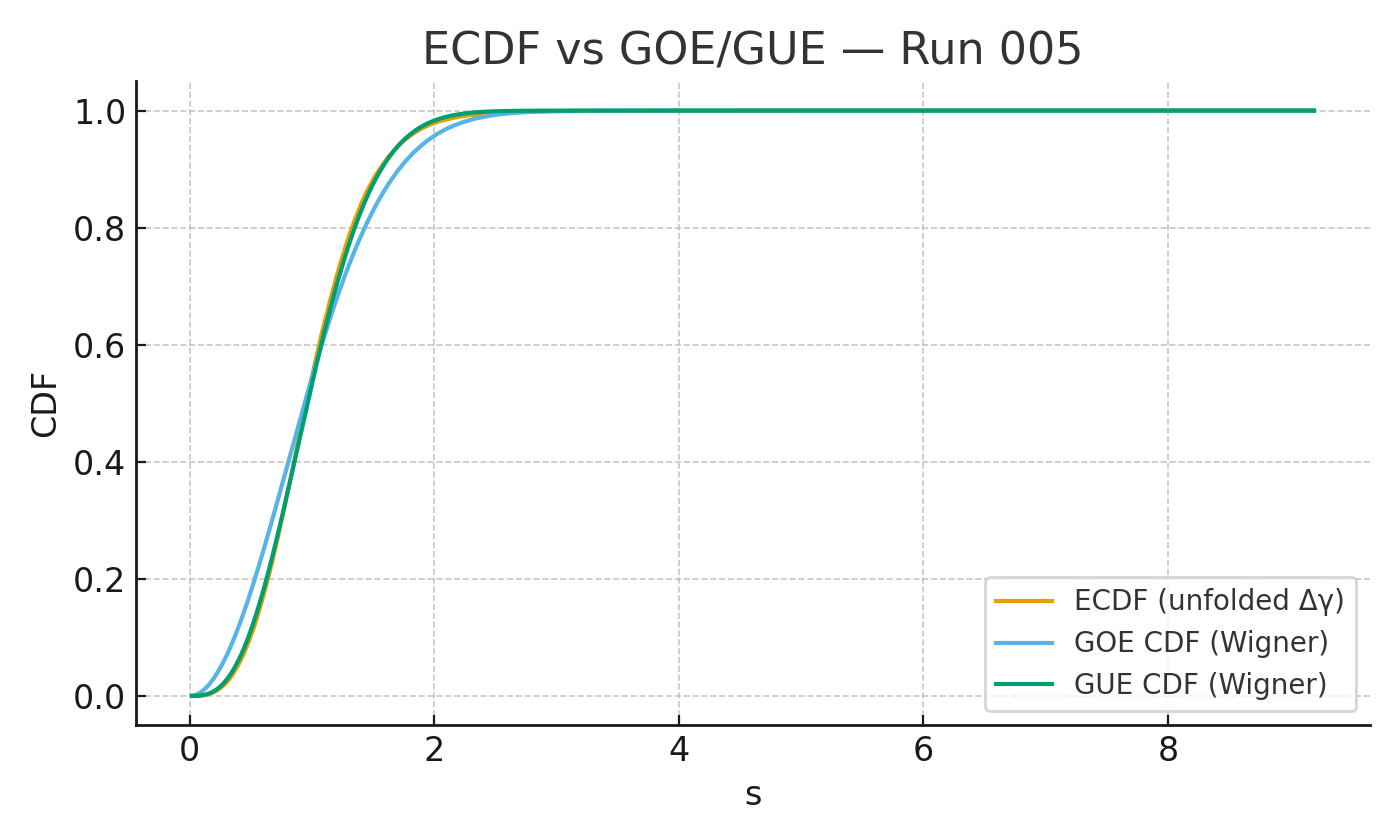

# plots (ECDF vs GOE/GUE)
$sorted=$sp|Sort-Object; $n=$sorted.Length; $y=1..$n | ForEach-Object { $_/$n }
$FxGoe = CDF-GOE $sorted; $FxGue = CDF-GUE $sorted
$ch=New-Object System.Windows.Forms.DataVisualization.Charting.Chart; $ch.Width=800; $ch.Height=480
$area=New-Object System.Windows.Forms.DataVisualization.Charting.ChartArea; $ch.ChartAreas.Add($area)
$S1=New-Object System.Windows.Forms.DataVisualization.Charting.Series; $S1.ChartType='FastLine'; $S1.BorderWidth=2
for($i=0;$i -lt $n;$i++){ [void]$S1.Points.AddXY([double]$sorted[$i],[double]$y[$i]) }
$S2=New-Object System.Windows.Forms.DataVisualization.Charting.Series; $S2.ChartType='FastLine'; $S2.BorderWidth=2
for($i=0;$i -lt $n;$i++){ [void]$S2.Points.AddXY([double]$sorted[$i],[double]$FxGoe[$i]) }
$S3=New-Object System.Windows.Forms.DataVisualization.Charting.Series; $S3.ChartType='FastLine'; $S3.BorderWidth=2
for($i=0;$i -lt $n;$i'){ [void]$S3.Points.AddXY([double]$sorted[$i],[double]$FxGue[$i]) }
$ch.Series.Add($S1); $ch.Series.Add($S2); $ch.Series.Add($S3)
$ch.Titles.Add("ECDF vs GOE/GUE — Run 005") | Out-Null
Ensure-Dir "$RunBase\figures\r005_ecdf_vs_wigner.png"; $ch.SaveImage("$RunBase\figures\r005_ecdf_vs_wigner.png",'Png')

# metrics JSON
@{
  raw_mean_spacing_first100k = ($spRaw|Measure-Object -Average).Average
  unfolded_mean = ($sp|Measure-Object -Average).Average
  unfolded_std  = [math]::Sqrt((($sp|ForEach-Object { ($_-($sp|Measure-Object -Average).Average)**2 })|Measure-Object -Average).Average)
  ks_goe_D = $ksGoe.D; ks_goe_p = $ksGoe.p
  ks_gue_D = $ksGue.D; ks_gue_p = $ksGue.p
  ad_goe = $adGoe; ad_gue = $adGue
} | ConvertTo-Json | Set-Content -Path "$RunBase\metrics\r005_summary.json" -Encoding UTF8

Write-Host "Run005 complete."

Reproducibility — PHP (CLI, Run 005)

CLI: php run005_make_all.php zeros6.gz. Writes r005_summary.json and a simple inline-SVG report.

<?php
// run005_make_all.php
$zeros = $argv[1] ?? 'zeros6.gz';
$run = 'run005';
@mkdir("$run/metrics",0777,true);
@mkdir("$run/figures",0777,true);
@mkdir("$run/data",0777,true);

// parse first ~120k; use first 100k
$vals=[]; $f=gzopen($zeros,'r') or die("open fail");
while(!gzeof($f) && count($vals)<120000){
  $line=trim(gzgets($f)); if($line==='') continue;
  $tok=preg_split('/\s+/',$line)[0];
  if(is_numeric($tok)) $vals[]=(float)$tok;
} gzclose($f);
if(count($vals)<100000) die("parsed ".count($vals));

$z=array_slice($vals,0,100000); $spRaw=[];
for($i=0;$i<count($z)-1;$i++){ $spRaw[]=$z[$i+1]-$z[$i]; }
$meanRaw=array_sum($spRaw)/count($spRaw);
$sp=array_map(fn($v)=>$v/$meanRaw,$spRaw);

// GOE/GUE CDFs
function cdf_goe($s){ return 1.0 - exp(-M_PI*$s*$s/4.0); }
function cdf_gue($s){
  $a=4.0/M_PI; $C=32.0/(M_PI*M_PI);
  $term1 = sqrt(M_PI)*erf(sqrt($a)*$s)/(4.0*pow($a,1.5));
  $term2 = $s*exp(-$a*$s*$s)/(2.0*$a);
  return $C*($term1-$term2);
}
function ks($x,$F){
  sort($x); $n=count($x); $Dplus=0.0; $Dminus=0.0;
  for($i=1;$i<=$n;$i++){
    $Fx = $F($x[$i-1]);
    $Dplus=max($Dplus,$i/$n - $Fx);
    $Dminus=max($Dminus,$Fx - ($i-1)/$n);
  }
  $D=max($Dplus,$Dminus);
  $t=(sqrt($n)+0.12+0.11/sqrt($n))*$D; $p=0.0;
  for($k=1;$k<=100;$k++) $p += ((-1)**($k-1))*exp(-2*$k*$k*$t*$t);
  $p=max(0.0,min(1.0,2.0*$p)); return [$D,$p];
}
function ad($x,$F){
  sort($x); $n=count($x); $A2=-$n;
  for($i=1;$i<=$n;$i++){
    $Fx=max(min($F($x[$i-1]),1-1e-12),1e-12);
    $u=(2*$i-1)/(2.0*$n); $A2 += ($Fx-$u)*($Fx-$u);
  } return $A2;
}

[$ksGoeD,$ksGoeP]=ks($sp,'cdf_goe');
[$ksGueD,$ksGueP]=ks($sp,'cdf_gue');
$adGoe=ad($sp,'cdf_goe'); $adGue=ad($sp,'cdf_gue');

file_put_contents("$run/metrics/r005_summary.json", json_encode([
  "raw_mean_spacing_first100k"=>$meanRaw,
  "unfolded_mean"=>array_sum($sp)/count($sp),
  "ks_goe_D"=>$ksGoeD,"ks_goe_p"=>$ksGoeP,
  "ks_gue_D"=>$ksGueD,"ks_gue_p"=>$ksGueP,
  "ad_goe"=>$adGoe,"ad_gue"=>$adGue
], JSON_PRETTY_PRINT));

echo "Run005 complete\n";

Reproducibility — C# (.NET 6 + ScottPlot, Run 005)

Setup

dotnet new console -o Run005Cs
cd Run005Cs
dotnet add package ScottPlot --version 5.0.19

Program.cs

using System.IO.Compression;
using ScottPlot;

string zerosPath = args.Length > 0 ? args[0] : "zeros6.gz";
string runBase = "run005";
Directory.CreateDirectory(Path.Combine(runBase,"metrics"));
Directory.CreateDirectory(Path.Combine(runBase,"figures"));
Directory.CreateDirectory(Path.Combine(runBase,"data"));

// Parse zeros
List<double> vals = new();
using (var fs = File.OpenRead(zerosPath))
using (var gz = new GZipStream(fs, CompressionMode.Decompress))
using (var sr = new StreamReader(gz))
{
    string? line;
    while ((line = sr.ReadLine()) != null && vals.Count < 120_000)
    {
        line = line.Trim();
        if (line.Length == 0) continue;
        var tok = line.Split((char[])null, StringSplitOptions.RemoveEmptyEntries)[0];
        if (double.TryParse(tok, out double v)) vals.Add(v);
    }
}
if (vals.Count < 100_000) throw new Exception($"Parsed only {vals.Count} zeros");
double[] z = vals.Take(100_000).ToArray();
double[] spRaw = z.Skip(1).Zip(z, (a,b) => a-b).Select(x=>(double)x).ToArray();
double meanRaw = spRaw.Average();
double[] sp = spRaw.Select(v => v/meanRaw).ToArray();

// GOE/GUE CDFs
double[] CdfGoe(double[] s) => s.Select(v => 1.0 - Math.Exp(-Math.PI*v*v/4.0)).ToArray();
double[] CdfGue(double[] s) {
    double a = 4.0/Math.PI, C = 32.0/(Math.PI*Math.PI);
    return s.Select(v => {
        double term1 = Math.Sqrt(Math.PI)*Erf(Math.Sqrt(a)*v)/(4.0*Math.Pow(a,1.5));
        double term2 = v*Math.Exp(-a*v*v)/(2.0*a);
        return C*(term1-term2);
    }).ToArray();
}
static double Erf(double x){ // Abramowitz-Stegun approximation
    // For simplicity in sample code; use MathNet.Numerics for production
    double sign = Math.Sign(x); x = Math.Abs(x);
    double a1=0.254829592,a2=-0.284496736,a3=1.421413741,a4=-1.453152027,a5=1.061405429,p=0.3275911;
    double t=1.0/(1.0+p*x);
    double y=1.0-((((a5*t+a4)*t+a3)*t+a2)*t+a1)*t*Math.Exp(-x*x);
    return sign*y;
}

// KS
(double D, double P) Ks(double[] x, Func<double[],double[]> F){
    double[] xs = x.OrderBy(v=>v).ToArray(); int n=xs.Length;
    double[] Fx = F(xs);
    double Dplus=0, Dminus=0;
    for(int i=1;i<=n;i++){
        Dplus  = Math.Max(Dplus,  i/(double)n - Fx[i-1]);
        Dminus = Math.Max(Dminus, Fx[i-1] - (i-1)/(double)n);
    }
    double D = Math.Max(Dplus,Dminus);
    double t = (Math.Sqrt(n)+0.12+0.11/Math.Sqrt(n))*D;
    double p=0; for(int k=1;k<=100;k++) p += Math.Pow(-1,k-1)*Math.Exp(-2*k*k*t*t);
    p = Math.Max(0, Math.Min(1, 2*p));
    return (D,p);
}
var (ksGoeD, ksGoeP) = Ks(sp, CdfGoe);
var (ksGueD, ksGueP) = Ks(sp, CdfGue);

// ECDF vs GOE/GUE
{
    double[] xs = sp.OrderBy(v=>v).ToArray();
    double[] ys = Enumerable.Range(1, xs.Length).Select(i => i/(double)xs.Length).ToArray();
    double[] FxGoe = CdfGoe(xs);
    double[] FxGue = CdfGue(xs);
    var plt = new ScottPlot.Plot(800,480);
    plt.Add.SignalXY(xs, ys);
    plt.Add.SignalXY(xs, FxGoe);
    plt.Add.SignalXY(xs, FxGue);
    plt.Title("ECDF vs GOE/GUE — Run 005");
    plt.XLabel("s"); plt.YLabel("CDF");
    plt.SavePng(Path.Combine(runBase,"figures","r005_ecdf_vs_wigner.png"),800,480);
}

// Metrics JSON
File.WriteAllText(Path.Combine(runBase,"metrics","r005_summary.json"),
    System.Text.Json.JsonSerializer.Serialize(new {
        raw_mean_spacing_first100k = meanRaw,
        unfolded_mean = sp.Average(),
        ks_goe_D = ksGoeD, ks_goe_p = ksGoeP,
        ks_gue_D = ksGueD, ks_gue_p = ksGueP
    }, new System.Text.Json.JsonSerializerOptions{ WriteIndented=true })
);

Console.WriteLine("Run005 complete.");

Run

dotnet run -- zeros6.gz
